SERIES 133
L14-L16AS

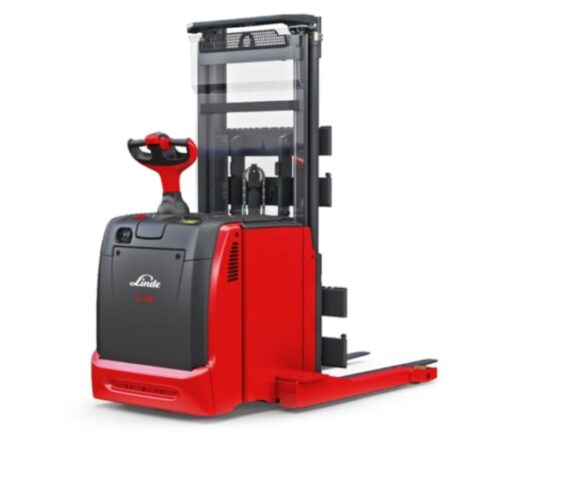

ELECTRIC PALLET STACKER
- 1.4 – 1.6 tonnes capacity
- Straddle
- Ideal for Storage
DOUBLE LOAD FOR HIGHER PRODUCTIVITY
The electro pallet stackers L14 – L16 AS comes in two standard versions, so the user has a custom fitted and effective solution available for their area of operation: the SP version with a fixed platform for optimum comfort for longer distances or the AP version with a foldable platform for more flexibility during operation. This version of the truck is more compact. Both platform versions can be combined with the various vehicle versions such as the double stacker. The maintenance-free 3 kW three-phase motor achieves a maximum speed of 10 km/h regardless of load weight. The easy to use servo supported power steering creates more productivity.
- Automatic braking on release of drive control
- Responsive electric countercurrent braking
- Electro-magnetic emergency stop button
- Choice of three straddle legs widths: 900, 1,200, 1,350mm
- Wide range of panorama-view masts, standard to triplex
- Electronic management of all components for quick and easy diagnosis
- Performance parameters matching the specific application
- Digital multifunction display with safety alert
- Truck access control by unique PIN code (no-cost option)
- Wide and deep storage space for wrapping paper, work gloves, utensils, etc.
- Powerful, smooth-running motor, 3kW maximum output
- Top speed 6 km/h, loaded or unloaded (pedestrian version)
- Top speed 10 km/h with or without a load (platform version)
- Moisture and dust-proof motor needs no maintenance
- Wide range of batteries, 375Ah (3PzS) to 620 Ah (5PzS)
- Wide range of chargers, standard and wall-mount type
The electro pallet stacker L14 - L16 AS lift and lower their loads with great sensitivity. Transport weights of up to 1400 kg can be quickly processed. The powerful 3kW three-phase motor propels at a maximum speed of 10 km/h. This truck series is suitable even for heavy operations.
Whether foldable (AP) or fixed (SP) platform, the operator is totally protected with the electro pallet stackers L14 - L16 AS AP/AS. The electro-hydraulic load-dependent braking system is a significant component: It reacts immediately when the operator leaves the platform, hits the emergency stop button or releases the drive switch. The truck automatically reduces its speed when cornering. The good visibility through the mast adds additional safety, because the operator always has the load in sight.
These trucks maneuver effortlessly with the servo supported power steering. The operator controls all drive and lifting functions intuitively and without strain using the tiller head. The generous storage compartments can hold many different work materials. In the SP versions, padded side surfaces and a rubberised platform ensure that the operator does not tire, even during long operations.
The digital multi-function display informs the user about all of the most important truck parameters. The service technicians profit from the CAN bus connection: They can read out and quickly check all system data via notebook. Then they are able to reach all of the important components without effort. The overall availability of the truck is very high with the maintenance-free 3kW three phase motor.
